Full-color display YXPC-DC-440X132

BRIEF INTRODUCTION:

 The YXPC-DC-440X132 Motorcycle-mounted Command Display System is used for traffic guidance through text and graphic warnings during police duty and emergency response operations. Our company has extensively incorporated suggestions from traffic police departments and other users in the design and production of this product, which features a novel design structure and ease of use.


FIND A DEALER
  • SPECIFICATIONS
  • FAQ
  • Product Tags

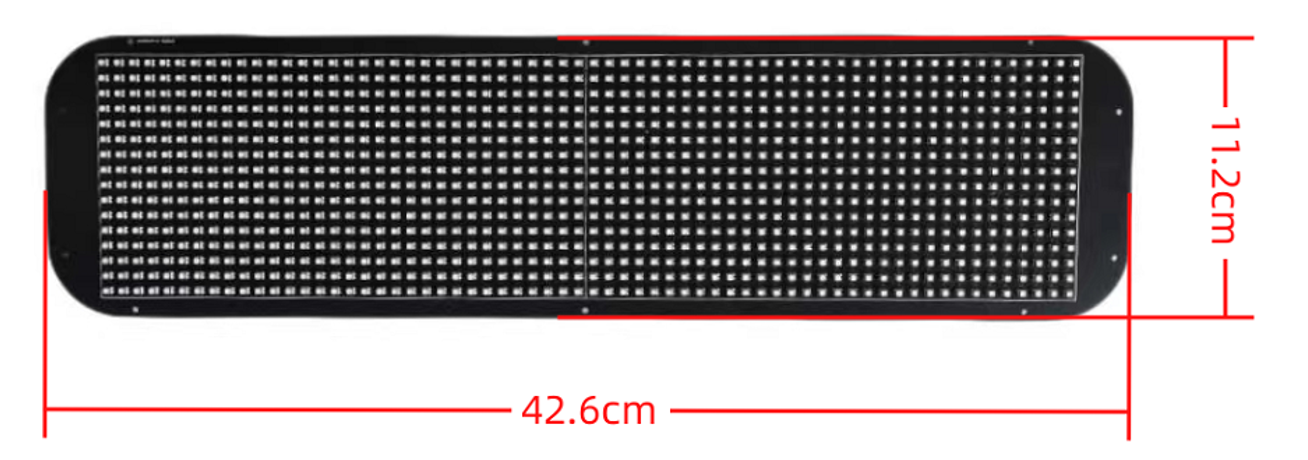

Physical resolution: (length) 64 pixels × (height) 16 pixels = 1024 pixels;

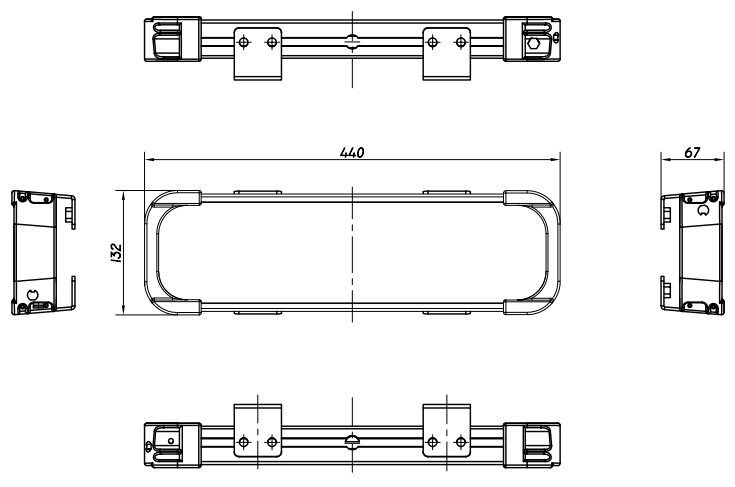

Screen size: 440mm X 132mm X 67mm; tolerance ±2mm
Screen weight (including mounting bracket): <2.5KG;
Visible distance: ≥100m;
Viewing angle: Horizontal ±60° Vertical ±60°;
Operating temperature: -40°C to +55°C;
Relative humidity: ≤95%;
Protection level: IP66;
Scanning method: 8S
Driver: Constant current
Drive mode: 1/8 scan
Refresh rate: 1920Hz
Frame rate: ≥60Hz
Brightness: ≥4500cd/m2
Brightness adjustment method: Software 15 levels adjustable

1 2

111





111111

DSC0690421

1111111111111
