Full Size Lightbar TBD-A3
BRIEF INTRODUCTION:
PIRAL- TBD-A3 is a super thin and compact new LED warning lightbar for emergency warning market. Its light weight body design fully demonstrates aerodynamics and greatly reduces wind resistance and wind noise. This lightbar can be widely applied for off road or other emergency vehicles.
FIND A DEALER
Introduction
SPIRAL- TBD-A3 is a super thin and compact new LED warning lightbar specially developed and made by Senken in 2018 for global emergency warning market. Its light weight body design fully demonstrates aerodynamics and greatly reduces wind resistance and wind noise. This lightbar can be widely applied for off road or other emergency vehicles.
Confirm to ECE R65, SAE Standard

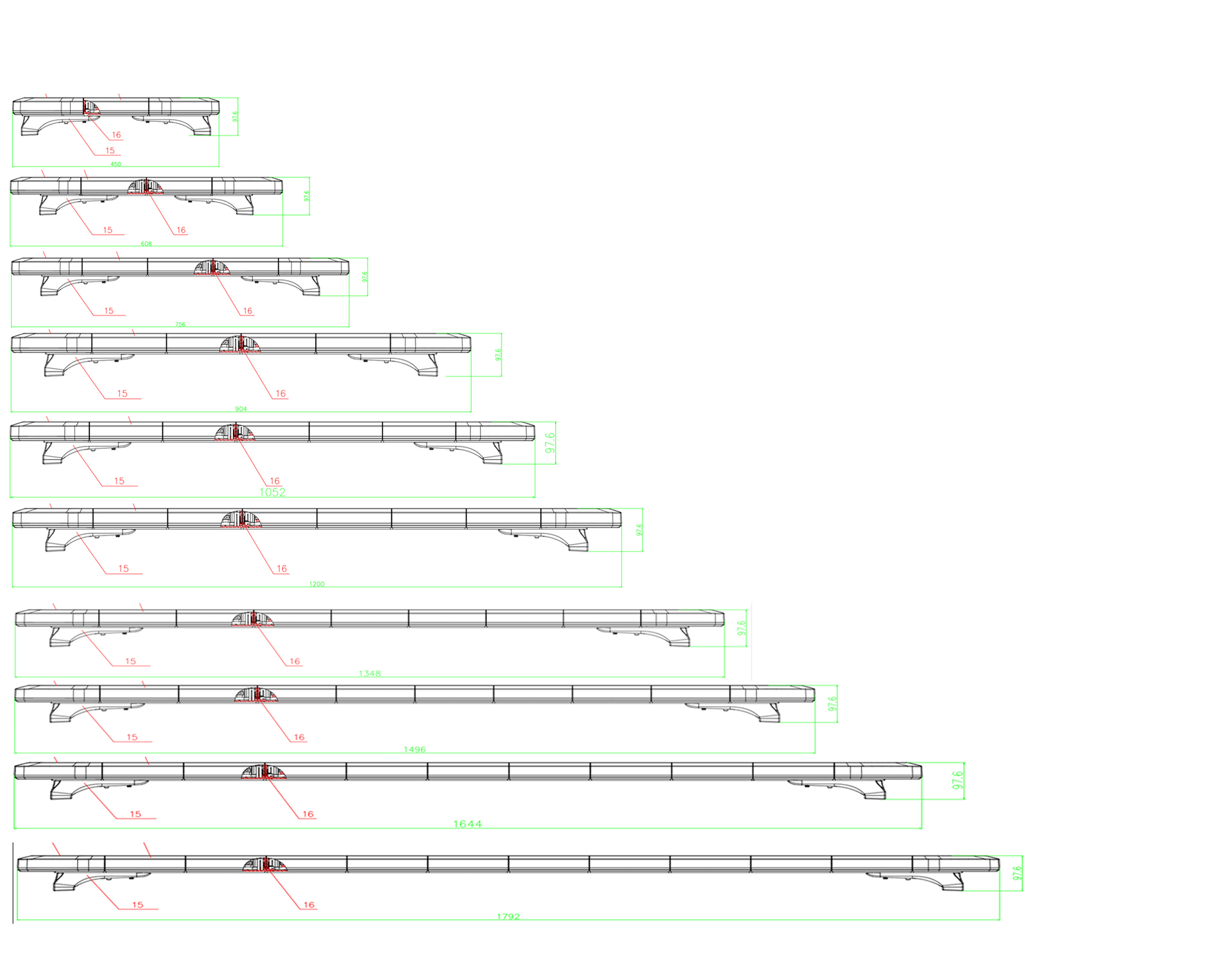

Length optional with 450mm, 605mm, 756mm, 904mm, 1052mm, 1200mm, 1348mm, 1496mm, 1644mm, 1792mm.
- High transparent UV proof polycarbonate lens cover;
- The modular integrated configuration maximizes the waterproof, vibration-proof and stability of the lightbar;
- Specially designed super thin profile but no distortion concern;
- Super large area aluminum housing enhances the LED module heat dissipation;
- Different length configurations could be customized;
- Widely applied for off road or other emergency vehicles.
- Compliant to ECE R65 and SAE standard.
- Working Voltage：DC12V or DC24V
- Max power：160W
- Light source：3W LED
- LED life span:100000h
- Flash frequency：2-4HZ
- Waterproof ：IP65
- Flash patterns：35 and can be customized
- Color options：Amber, red, blue, white
- Working temperature：-30 - + 60 ℃
- Dimension：120(L)X28(W)X9.8(H)cm
- 48LX11WX3.8H
- Mounting: Gutter mount
- Standard: ECE R65 and SAEJ845
Q1: How to make order from your company?
A1: Please send inquiry message to email：export@senken.com.cn for any products details or solutions you need, we will contact with you for quotation on requested products, payment terms and shipping way ect.in details.
Q2:What’s the MOQ of your orders?
A2:Depending on different products, lightbars could be from one piece, for small headlights, MOQ usually starts from 50units. .
Q3:What certificates do your products have?
A3: We are supplying E-MARK, SAE, ROHS and NIJ certificate for different products based on different countries. For enterprise ceritificates, we have ISO9001, IS140000, ISO180000.
Q4:How long is the warranty on your products?
A4: We provide warranty terms based on different products, normally warranty period from one year to three years.
Q5:Do you accept sample orders?
A5: Yes, we accept sample orders for all our products, please contact us for further details.
Q6:Can you provide product customization services?
A6: Yes, we are supplying the products with customized and can provide the different solutions against customers demand.
Q7:What is the delivery time for normal orders?
A7: It will take us about 2 to 3 weeks for normal orders, for customized products, will consider the development process, normally 8 weeks most.
Q8: How to become your distributor or dealer?
A8: Please contact our sales representative for the details different regions:
Run@senken.com.cn for South East Asia
Sales01@senken.com.cn for Middle East and Ocean
Annie_wang@senken.com.cn for Europe and Africa
Thomas@senken.com.cn for North America and South America
