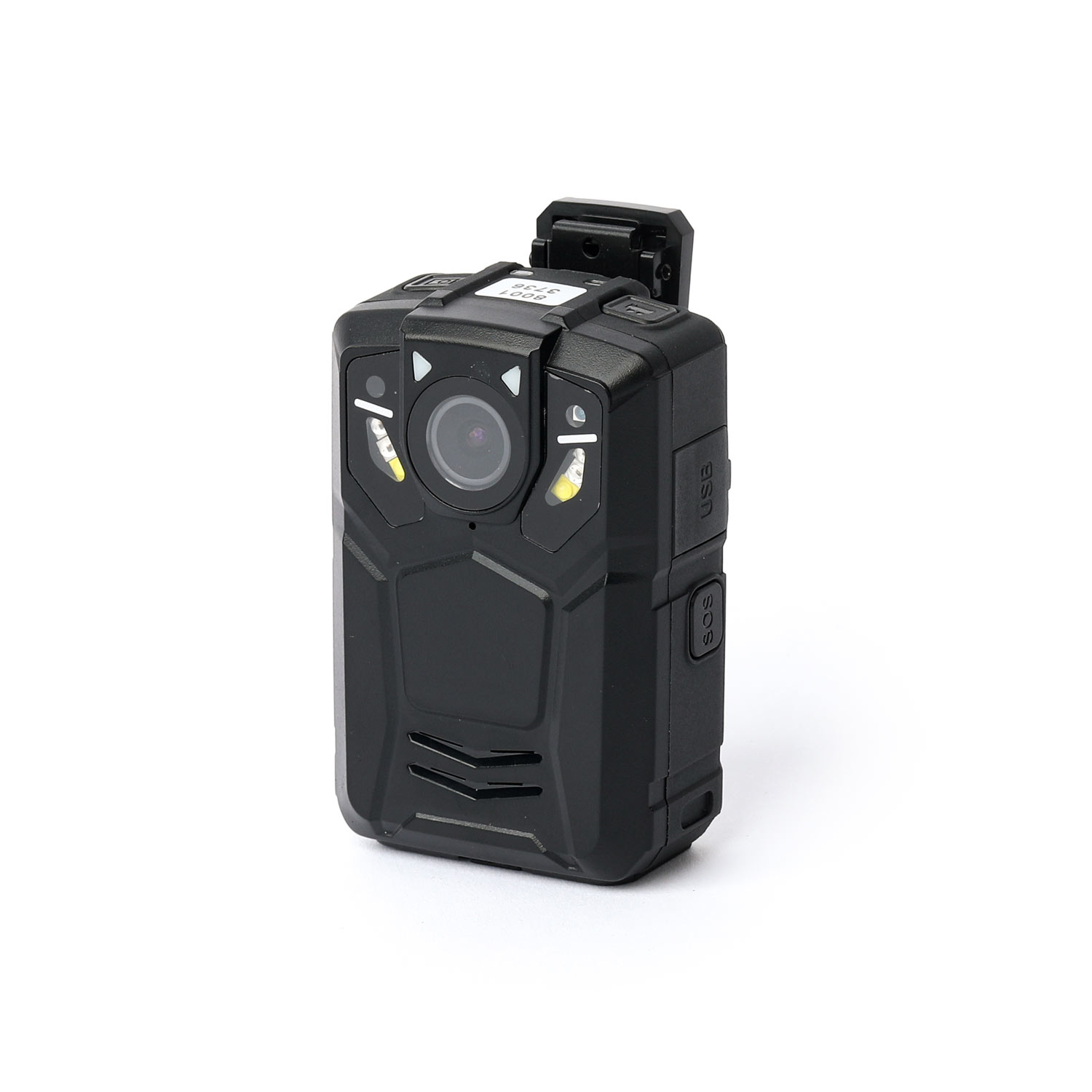

DSJ-X7 Body Camera With WIFI GPS 4G Backup Battery
DSJ-X7 4G body camera with video, audio and recording function. As one of the high-tech field of law enforcement audio and video recording equipment.
Meeting the industry A-level standards, strict shape design, professional structural design. It is using the industry’s most advanced two-color injection molding process, the plastic molding surface after the full silicone injection, greatly enhance the anti- Drop water resistance.
With a separate turn on, video, camera and recording button; professional waterproof design, can be used in a variety of harsh environments.
| OS | Linux 3.10.73 | |
|
Booting time |
< 12 s | |
| Language | English | |
| Video | Video input | 1x digital Camera for 1080p/720p/360p recording，available for external camera |
| Video output | 2 inch LCD screen | |
| RecordingResolution | 1920×1080/1280×720/640×360 | |
| Frame rate | 30 fps@1080p | |
| Record mode | Record audio and video at the same time | |
| Compression | H.264 (High profile up to level 4.1) | |
| Audio | Audio input | 1x MIC input, support intercom connection with USB |
|
Video Process |
Live video resolution | 1920×1080/1280×720/640×360 |
| Photograph | 1920×1080 ～ 8640×4752 | |
| Snap | Support snapping during recording（the photo resolution base in recording） resolution） | |
| Storage | Built in 16GB TF card(available for 16～128GB) | |
| Source | IR | Up to 10 Meters with Visible shape image at night |
| Lens | lens’ angle | >125° |
| Alarm | Alarm input | Support alarm input and the alarm can be show in platform |
| Interface | USB | 1x USB，for charging, communication with PC, upgrade OS, connect external camera etc |
|
Network |
Protocol | TCP/IP |
| 3G/4G | Optional，built in 3G/4G module (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE) | |
| wifi | Optional，support WIFI connection and AP | |
| GPS | GPS | Optional module for BDS/GPS/GLONASS，to record location and speed |
|
Other |
Time | synchronize with GPS, internet, PC |
| Dual bit stream | Two different bit stream for recording and live streaming via 4G/3G | |
| Default | Can set to default setting | |
| Indicator | Power、Record、Snap、Audio record | |
| Battery capacity | 2600mAh x 2 Replaceable battery, keep NON-4G device running for about 8h，keep 4G device running for about 6h；Charging time is about 4h | |
| Backup battery | 60mA（Optional, keep device running during switch battery） | |
|
Size |
88.3*59.8*34.4mm
|
|
| Wight | About 165g |
