Electric shock catcher

1

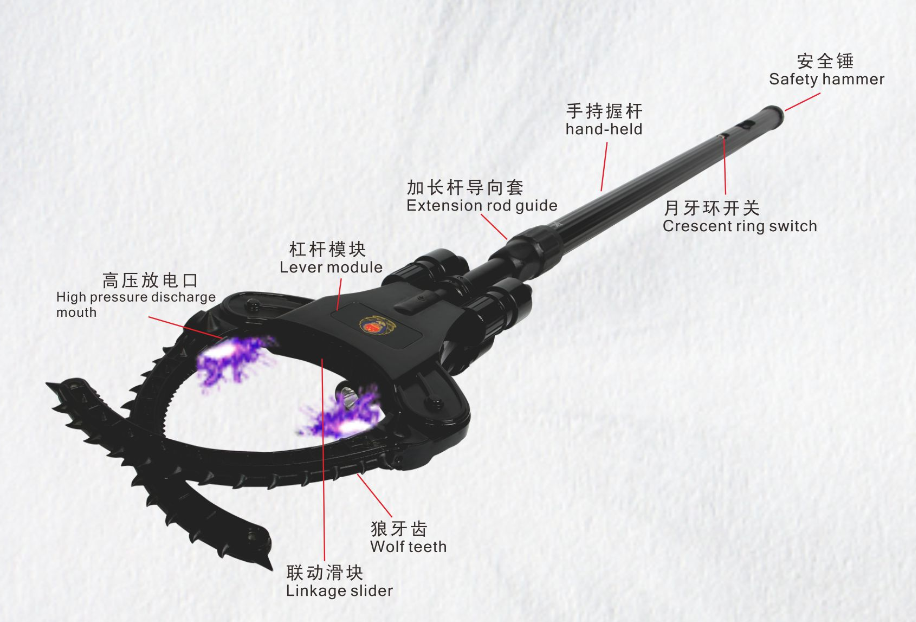

A sharp weapon for snatching knives, the crescent ring is made of metal wolf tooth shape, which has the ability to attack and can also protect against knife cuts.

Two electric shock points release electric shocks on both sides of the crescent ring.

Parameters:

Normal size (L*W) 1287mm X 200mm
Normal working size (L*W) 1287mm X 371.80mm
Extended working size (L*W) 2031mm X 371.80mm
Weight ≤2.85kg
Input DC5V/2A
High voltage output (V) 30,000 (V) X2
Flashlight rated power 3W
Battery capacity 4000mAh
Catcher material aviation aluminum
Diameter of the hand-held grip 33±1mm
Crescent ring opening diameter 371±10mm
Crescent ring closing diameter 200±5mm
Minimum working length 1287±10mm
Maximum working length 2031±10mm
Crescent closing force ≤50N
Extension rod pull-out force at minimum working length 600N
Extension rod pull-out force at maximum working length 1000N
Extension rod retraction force at maximum working length 600N
Bending force at the midpoint of the length direction at maximum working length 600N

How to use:

1. Hold the grabber (hold the handle of the grabber head with your right hand and the long rod of the grabber with your left hand), press the crescent ring switch, and pull it back to the top.

2. Push the open grabber to the disposal target. The crescent ring will automatically close after the linkage slider of the grabber is stressed, and the disposal target can be controlled. Push back with your hands and pull forward with your feet.

3. When the disposal target is controlled, press the crescent ring switch to turn on the movable crescent ring, then press the dot and push forward to the top, and press the linkage slider down to close the crescent ring.
