Installation-(Pictures Display) Of Led Flashing Light & Lightbar (Traffic Signals Lights) For Police And Law Enforcement
1. What is a warning light or lightbar
(SENKEN-360)
Warning lights are generally used to maintain road safety, usually in the development of police vehicles, engineering vehicles, fire trucks, emergency vehicles, prevention management vehicles, road maintenance vehicles, tractors, emergency A/S vehicles, mechanical equipment, etc., machinery, electricity, For machine tool, chemical industry, telecommunications, shipbuilding, metallurgy and other electrical control circuits, it is used for control signal interlocking and other functions.

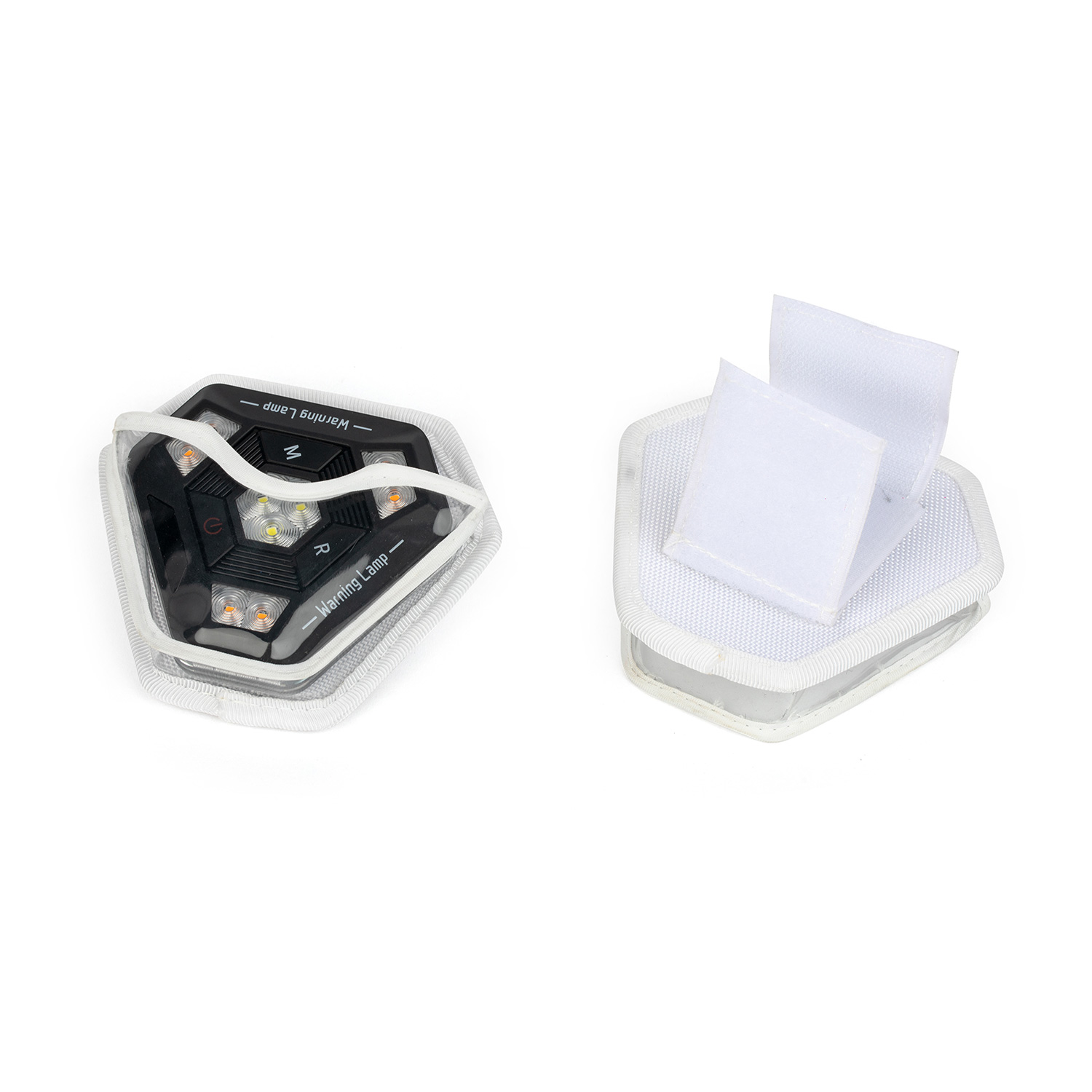

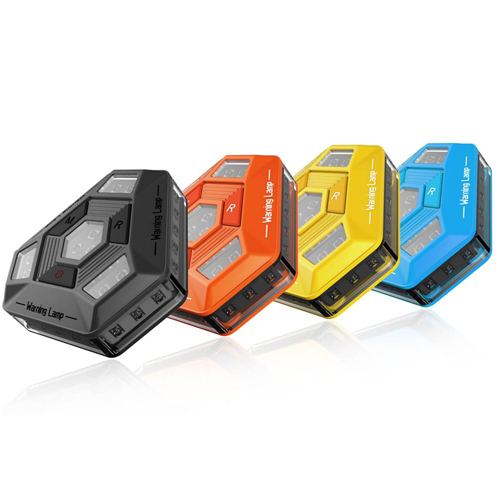

SENKEN-360 degree magnetic warning light—This light has many usage. This warning light can be used both for civilian use and for police and traffic police light staff and sanitation workers.For example, it can be used in cars. It can be used as a signal light in a tent when traveling, used as a signal light on a helicopter, and used as a signal light for pedestrians and vehicles on highways, roads and bridges.
(Cycling, traveling, helicopter)
(For cars)
(road safety)
This small warning light is also very convenient to carry. If you are a policeman or a traffic policeman, you can use our leather police belt specially designed for you, and carry this light on your own waist. If you are a For traveling backpackers, you can put this light in your own backpack, if you are a girl you can also put it in a plastic bag or put it in your canvas tote bag, if you are a hobby For cyclists, you can use our professionally designed hook to hang this light on your own bicycle. If you are a dog walker, you can also hang it on the dog leash on the dog’s neck ,
2. Types of LED warning lights
Under normal circumstances, warning lights can provide products of various lengths according to vehicle types and uses, and have a structure of lampshade combination. When needed, the lampshade on one side can be combined with composite colors.
The appearance characteristics of warning lights can be divided into: combined long row warning lights, combined tower warning lights, small various types of warning lights, etc.
<1> Single warning light
50mm: Φ50mm monomer type single light warning light Φ50 high monomer type single light warning light
Φ22 mounting hole single light warning light
Φ22 mounting hole sound and light integrated warning light
70mm: Φ70 single-type single light warning light
Φ70 high monomer single light warning light
90mm: Φ90 single-type single light warning light
Φ90 monomer sound and light integrated warning light Φ90 cylindrical monomer single light warning light
Φ90 cylindrical single acousto-optic integrated warning light
150mm: Φ150mm single type single light warning light
Φ150mm monomer sound and light integrated warning light
<2> Combined warning lights
50mm: Φ50 combined warning light assembly
Φ50 combined warning light sound assembly
70mm: Φ70 combined warning light assembly
Φ70 combined warning light sound assembly
90mm: Φ90 combined warning light assembly
The signal indicator light of the Φ90 combined warning light sound component is also called alarm light, warning light, and signal light.
<3> The classification of signal lights
1. Constantly bright multi-layer indicator (DC)
2. Strobe multi-layer indicator (DS)
3. Reflective rotating multi-layer indicator (DF)
4. Common strobe indicator (DPF)
5. Ordinary reflective rotating indicator (DPS)
6. Combined indicator (DZ)
The signal indicator is suitable for signal prompts of common failures of various machinery, material supply and interruption, remote monitoring of various signals such as operating instructions
In addition, it can also be divided into different light sources according to different forms: 1 bulb to light; 2 LED flash; 3 xenon tube strobe. Among them, the LED flash is an upgraded version of the bulb to light, which has a longer service life.
3. Application range and function of LED warning lights
Warning lights are generally used to maintain road safety, usually in the development of police vehicles, engineering vehicles, fire trucks, emergency vehicles, prevention management vehicles, road maintenance vehicles, tractors, emergency A/S vehicles, mechanical equipment, etc., machinery, electricity, For machine tool, chemical industry, telecommunications, shipbuilding, metallurgy and other electrical control circuits, it is used for control signal interlocking and other functions.
Warning lights, as the name suggests, play the role of warning reminders-generally used to maintain road safety, effectively reduce the occurrence of traffic safety accidents, and can also prevent potential unsafe hazards. -Under normal circumstances, warning lights are usually used in the development of police vehicles, engineering vehicles, fire engines, emergency vehicles, prevention management vehicles, road maintenance vehicles, guide vehicles, emergency A/S vehicles, and mechanical equipment.
Under normal circumstances, warning lights can provide products of various lengths according to vehicle types and uses, and have a structure of lampshade combination. When needed, the lampshade in the side direction can be combined with composite colors. In addition, warning lights can also be divided into different types of light sources: bulb turn light, LED flash, gas tube strobe. The middle LED flashing form is an upgraded version of the bulb turn light form, which has a longer service life and more energy-saving. Lower heat.
<1> What is the use of warning lights in these situations?
For example, for construction units, warning lights should be turned on during road construction, especially in the case of unknown road conditions at night. It is easy to cause some accidents. Unfamiliar people are easy to trip and fall.
Causes traffic congestion, so it is very necessary and necessary to set up warning lights, which play a warning role.
Secondly, it is the same for cars driving on roads, and occasionally appearing during long-term driving-some problems are very common. In the case of having to park on the road, in order to ensure safety, the driver needs to place the vehicle dangerously in Fujian. Warning lights to remind passing vehicles to notice new obstacles ahead, slow down and drive safely. Warning lights with good performance can expand the visual range of hazard warning models, allowing other driver groups to see this reminder more clearly. So try to use warning lights with good performance.
In addition, when security guards are patrolling fixed security posts and police motorcycles, when criminals want to commit illegal incidents, they will be affected and prevent illegal actions. People who are injured can seek help in time, and a wider range of criminals will be affected. The role of warning and restraint can effectively control and reduce crimes and maintain social stability. LED strobe lights are installed in the community and on the sidewalks. You can see it with more attention and better protection.Yourself and your family.
Of course, it is no exception for those who like to travel by bicycle. If you want to make it easier on the way, or if the tire is flat, you will have to stop. At this time, it is very dangerous to stop in a bend, and it is easy to cause a traffic accident. So this kind of more convenient LED warning light plays a key role. Moreover, it is not only the role of roadside warning, but also can be used as a lock when necessary.
<2> Warning light power
1. Short row of LED warning lights: 48-70W
2. Long row of rotating warning lights 1000-2000: 1000 model: 210W, 2000 model: 210W
3. Long row rotating warning lights 3000-4000: 3000 model: 280W, 4000 model: 280W
4. Long row rotating warning lights 6000-8000: 6000 model: 290W, 7000 model: 70W, 8000 model 380W
5. Long row burst flashing warning light 1000-8000: 1000 model: 230W, 2000 model: 230W: 3000 model: 265W:
4000 Model: 160W: 5000 Model: 165W: 6000 Model: 240W: 7000 Model: 100W: 8000 Model: 260W
6. Long row of LED warning lights 1000-8000: 1000 Model: 100W: 2000 Model 80W: 3000 Model: 150W: 4000 Model 150W: 5000 Model: 170W: 6000 Model: 210W: 7000 Model 80W: 8000 Model 280W
4. How to install the warning lights
Warning lamps can be divided into: long rows of warning lights, short rows of warning lights, and ceiling warning lights according to different purposes and sizes. Let's describe the installation method of these warning lights in detail below.
1. Installation of long row of police lights
The long row of lights is composed of a long row of lights, light legs, hooks, small pieces of hooks and fixing screws. The specific installation is as follows:
Led lightbar

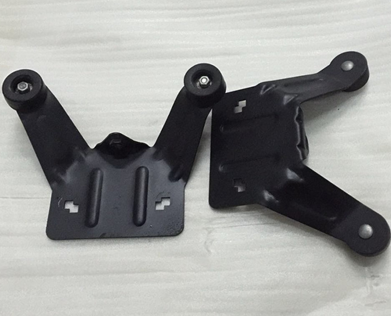

(Lamp leg

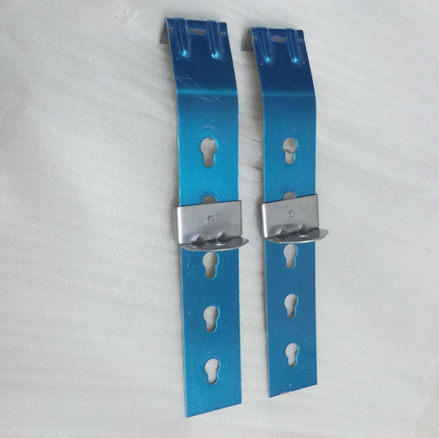

(Draw hook, small pieces of draw hook)

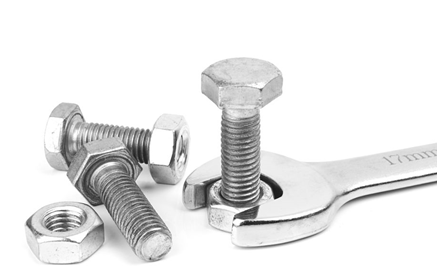

(fixing screws)
1. When installing, first place the long row of warning lights at a suitable position on the roof of the car.
2. Remove the hook screw from the lamp leg for subsequent installation.
3. Take out the hook, the small parts of the hook, the fixing screws, etc., select the appropriate fixing holes on the hook, and fix the small parts and the hook with screws.
Pass the hook screw through the small part of the hook and connect it to the corresponding nut of the lamp leg. At the same time, adjust the hooks on both sides to a proper state, and then tighten the hook screws alternately.
Route the control line of the long row of warning lights along the door sealing groove to the driver's side. Take out the controller, and connect the controller interface and the long row of warning lights control line interface correspondingly.
Connect the matched DC voltage to the positive and negative poles of the power supply. The red is the positive pole of the DC power supply, and the black is the negative pole of the DC power supply.
<1> Installation of short row of warning lights
The fixing methods of the short row of lights are divided into bottom screws, iron sleeves, tripods, and suction cups.
When the short row of warning lights are used for guards at the guard post, it is better to fix them with the bottom screws to increase the stability.
2. It is suitable to be fixed with iron sleeves at the construction junctions. The warning effect is good, which can reduce the damage to the lamp body and prolong the service life.
3. In the construction site, the tripod is easy to carry and install, and has strong mobility.
Suction cups can be used on the roof and sentry boxes, and the two strong magnet disks have anti-scratch protective films, which can reduce collisions and increase safety.
Different types of short row warning lights have different fixing and installation methods, and different installation methods will show different effects.
<2> Ceiling lamp installation
The fixing methods of the small police lights on the car roof are divided into screw fixing and magnetic fixing.
1. Screw fixation can increase the stability of the roof warning lights, wind resistance, and collision resistance. It is suitable for large engineering vehicles such as engineering vehicles and snow plows, and is convenient for walking on rugged and bumpy roads.
2. It is simple and convenient to install by magnetic suction. It is directly fixed by the suction cup at the bottom of the police light, and it is not easy to damage the body. It is suitable for the installation of small cars or sanitation vehicles.
There are different installation methods according to different models, and the display effect after installation is also different, and the best fit is the best.
<3> The fixing methods of the small police lights on the car roof are divided into screw fixing and magnetic fixing.
1. Screw fixation can increase the stability of the roof warning lights, wind resistance, and collision resistance. It is suitable for large construction vehicles such as construction vehicles and snow plows, and is convenient for walking on rugged and bumpy roads.
It is simple and convenient to install by magnetic suction. It is directly fixed by the suction cup at the bottom of the police light, and it is not easy to damage the body. It is suitable for the installation of small cars or sanitation vehicles.
There are different installation methods according to different models, and the display effect after installation is also different, and the best fit is the best.
The following figure shows a method of installing a led police warning lights (lightbar)
1. preparation

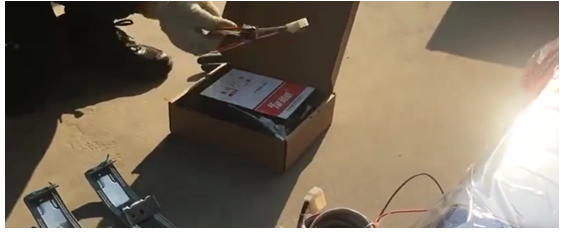

<1> Determine the product structure: police lights, host, hook, handle
<2> Before installing the warning lights, first attach the hook, which refers to the length and width of the vehicle, and install it in a suitable position

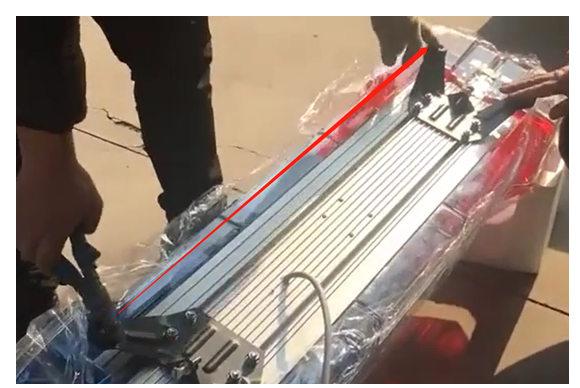

<3> The light legs of the police light can be adjusted according to the width of the car.
![3NRP`~(YPI`HO8YG%X4]MM2.png](http://www.senken-group.com/uploads/202107221018483255667.png "1626919700908400.png")

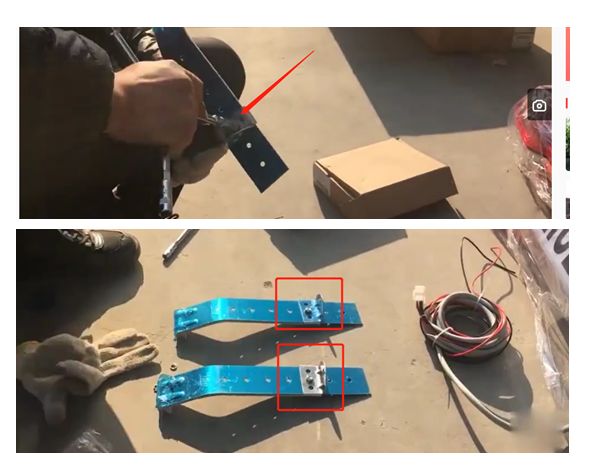

<4> Install the hook here

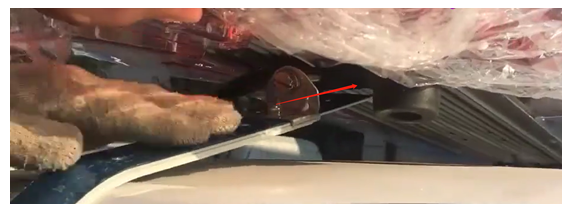

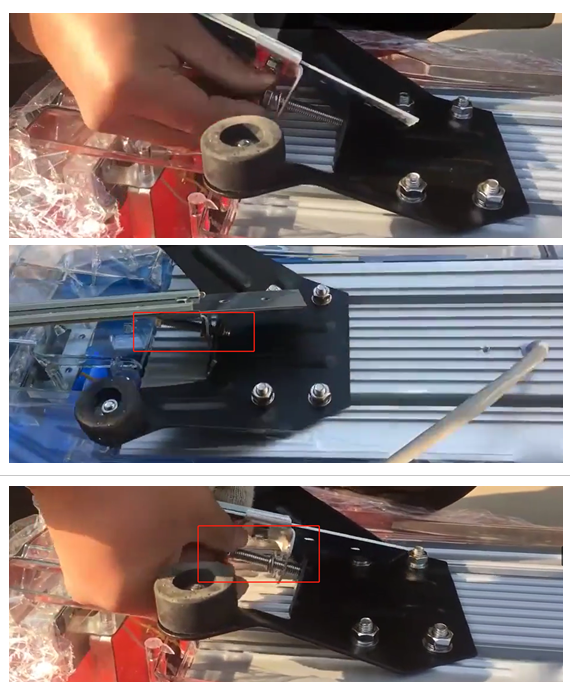

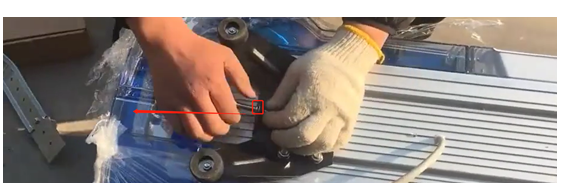

<5> The lamp legs can be adjusted and moved by screws, only to the suitable position

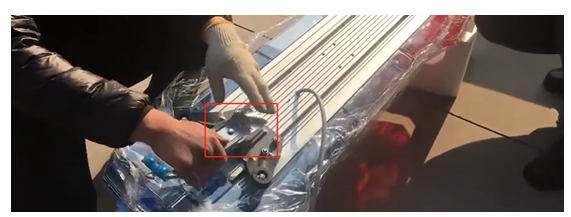

<6> Install the pull hook on the warning light, pay attention to the installation method
2. The second step is to install the warning lights

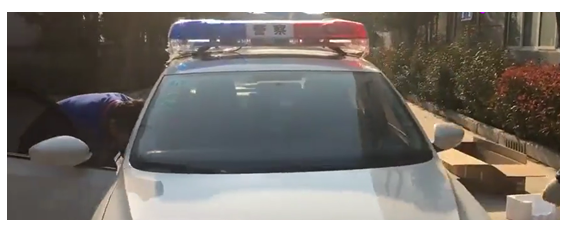

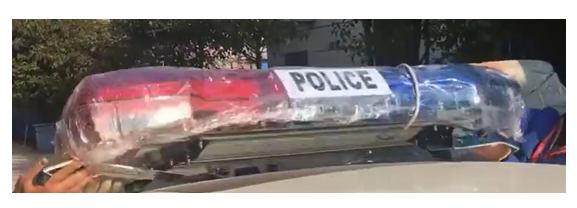

<1> Place the light on the roof with legs down

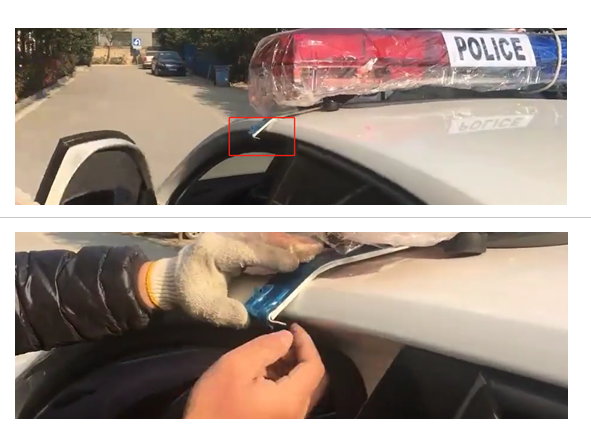

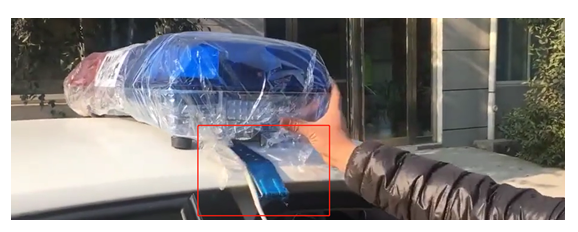

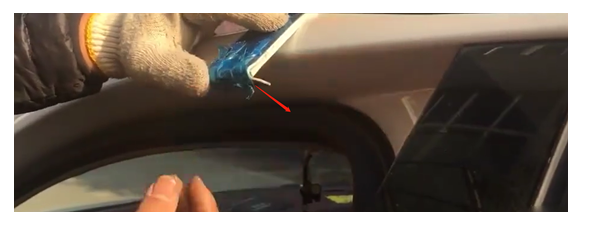

<2> The hook is fixed to the edge of the car (above the front door)
<3> If the angle is not suitable, use tools to adjust the shape

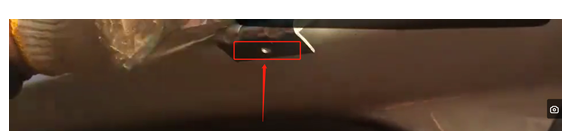

<4> In the lower round hole, riveted with rivets
<5> If the pull hook is too long, the lamp leg can be moved to the inside, Or adjust the position of the hook screw and fix it properly
<6> The other side was fixed in the same way

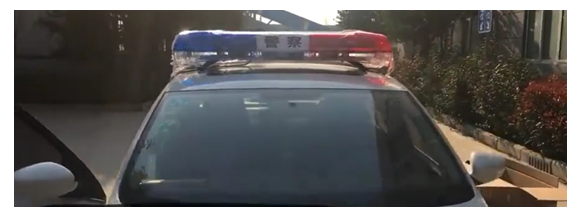

,<7> Details: the middle horn of the police light should be aligned with the center of the car

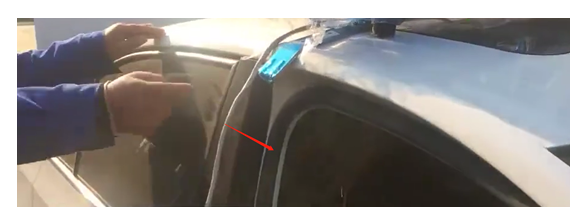

<8> The police light wire should be installed in the car's sealing strip

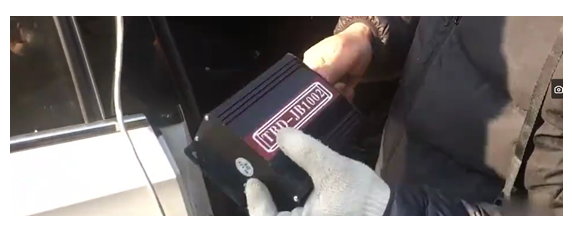

<9> In addition to the power supply, link the host and the handle

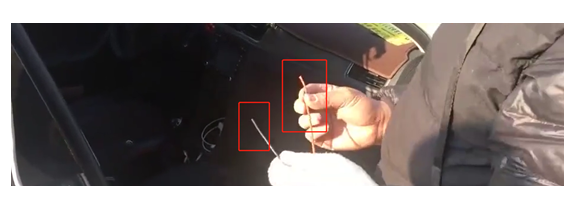

<10> The warning light is 12v, the black wire is connected to the negative "-", and the red wire is connected to the positive "+". Connected to the power supply inside the car or under the front hood of the car

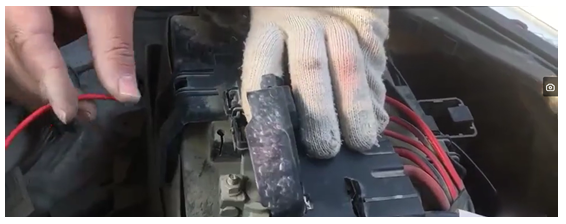

3. The third step is to connect the police light wire to the front power supply. For safety, connect a connector to the head of the wire

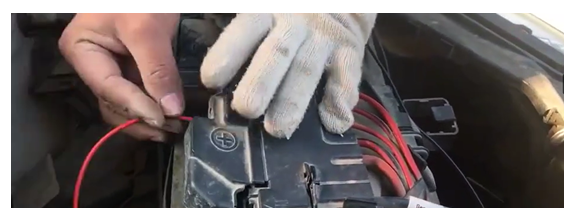

<1> The positive pole is connected to the power supply, the negative pole is connected to the negative pole,
<2> It’s better to install a fuse or fuse on the positive pole, which is safer
<3> After the installation is complete, the warning lights can be used normally
