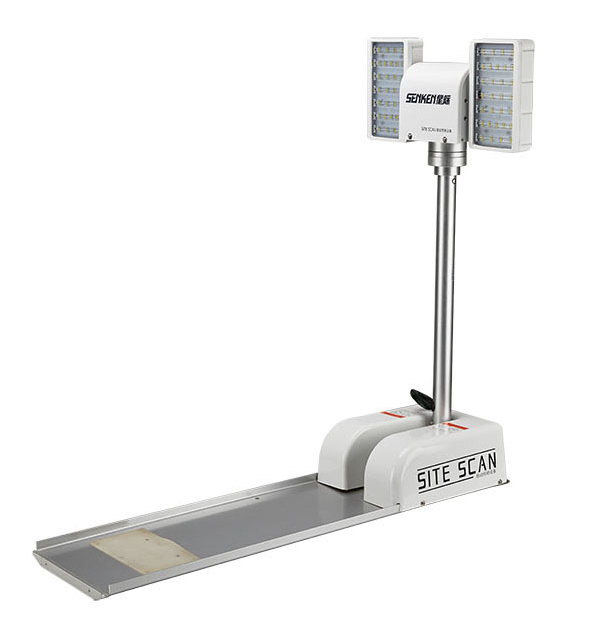

LED Vehicle-Mounted Lighting Equipment SITESCAN CFB12290
CFB12290 tower light is a newly developed vehicle-purposed lighting system that can position in all directions in darkness. It is designed and optimized based on international advanced structure and the actual application of domestic market featuring of manual remote control, auto-restoration, reliable performance, convenient operation and advanced design, etc.

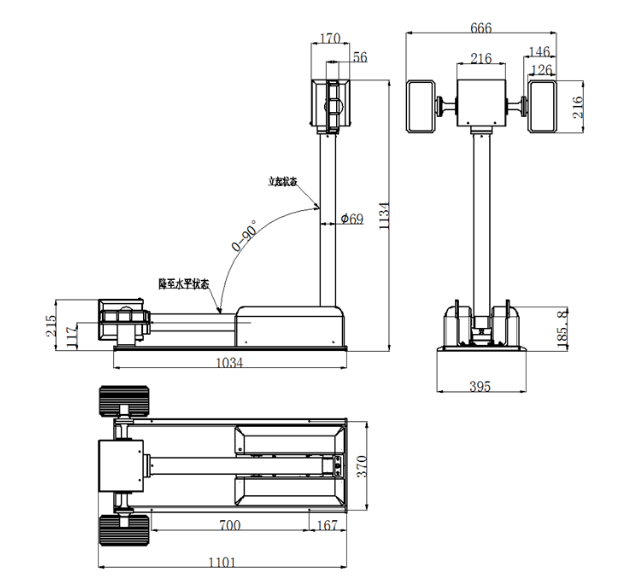

CFB12290 series controller figuration drawing
Parameters:
| System working voltage | DC12V or DC24V |
| Lamp working voltage | DC12V or DC24V |
| Mast height | Adjustable up to 1.2m approx |
| Lamp Power | 90W / LED |
| Lamp type | Floodlight |
| Working current | ≤12A±1A |
| Lamp rotating working current | ≤2 A (max) |
| Lamp luminous flux | 9000 Lm |
| Horizontal rotary angle | 380 degree |
| Vertical rotary angle | 330 degree |
| Control way | With light and system controller of wired and wireless remote |
