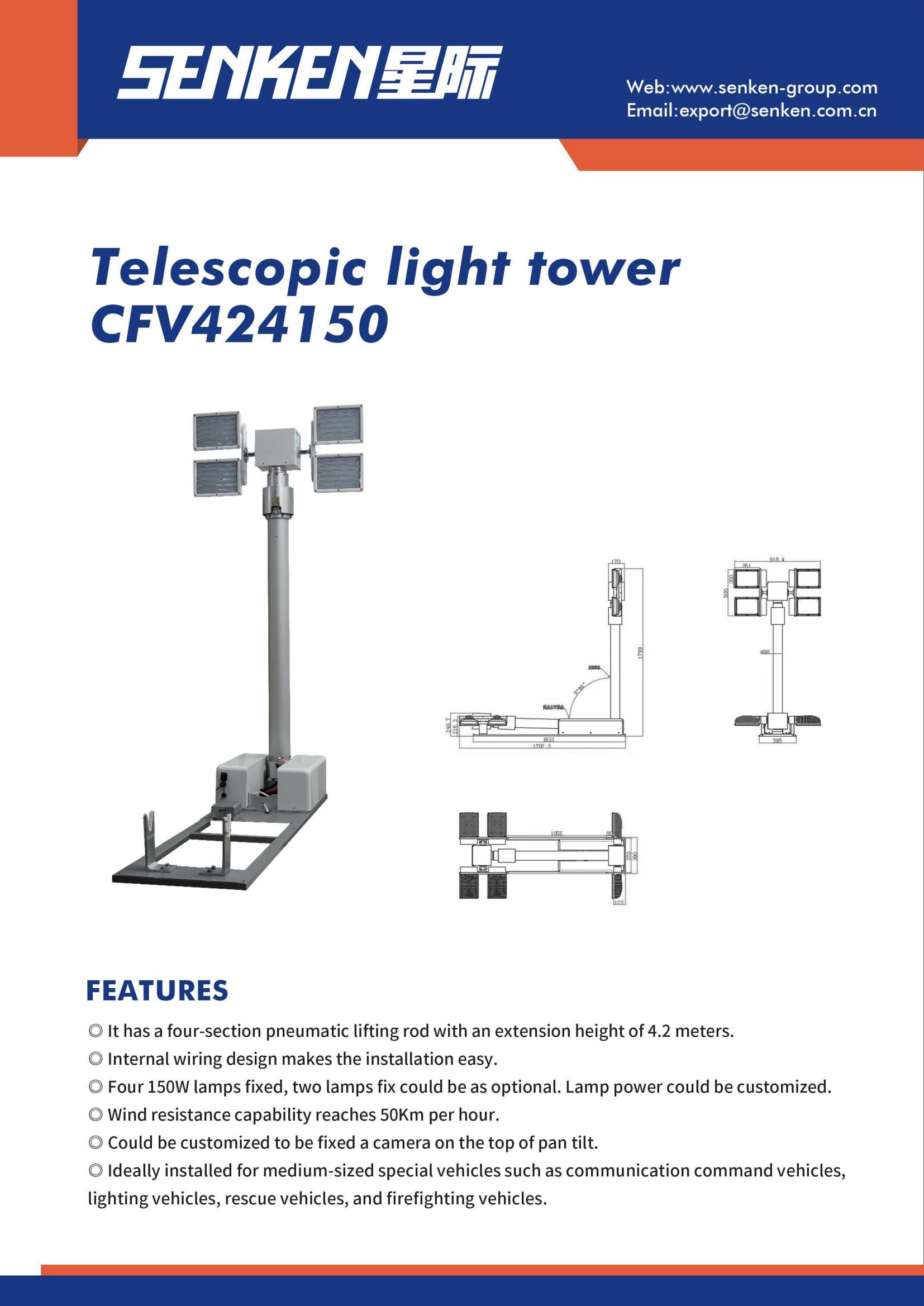

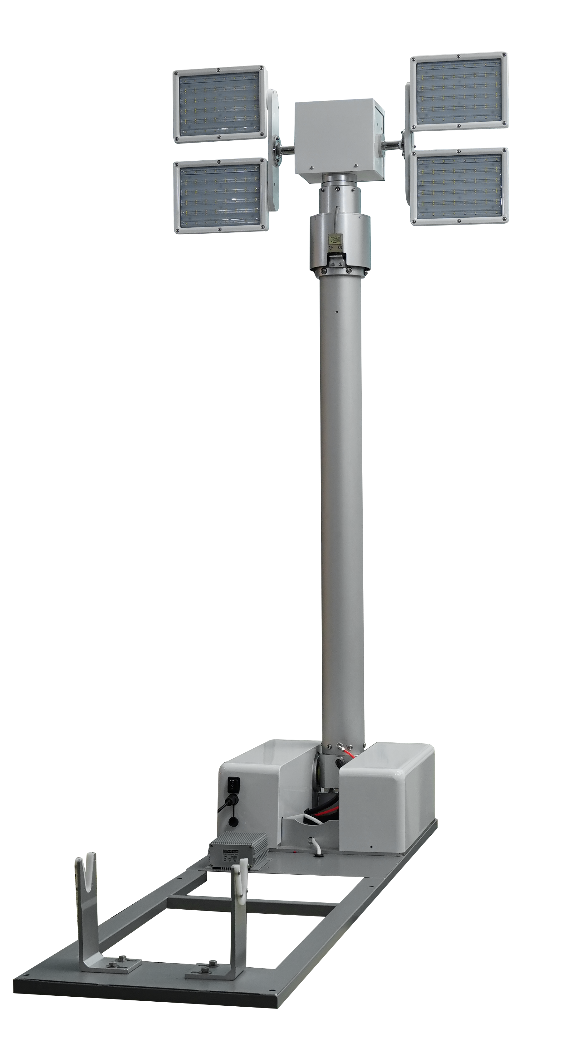

Features:
l It has a four-section pneumatic lifting rod with an extension height of 4.2 meters.
l Internal wiring design makes the installation easy.
l Four 150W lamps fixed, two lamps fix could be as optional. Lamp power could be customized.
l Wind resistance capability reaches 50Km per hour.
l Could be customized to be fixed a camera on the top of pan tilt.
l Ideally installed for medium-sized special vehicles such as communication command vehicles, lighting vehicles, rescue vehicles, and firefighting vehicles.

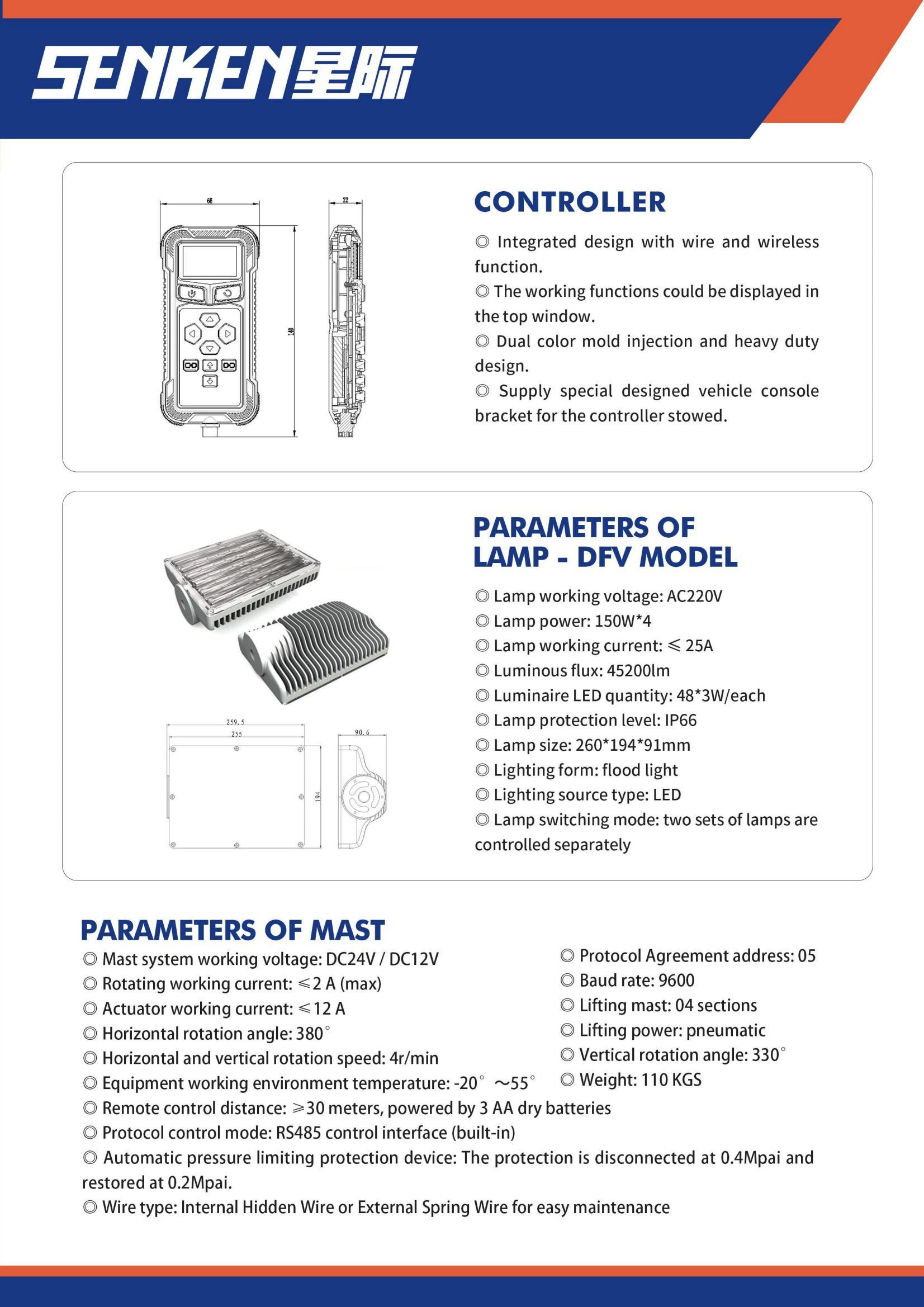

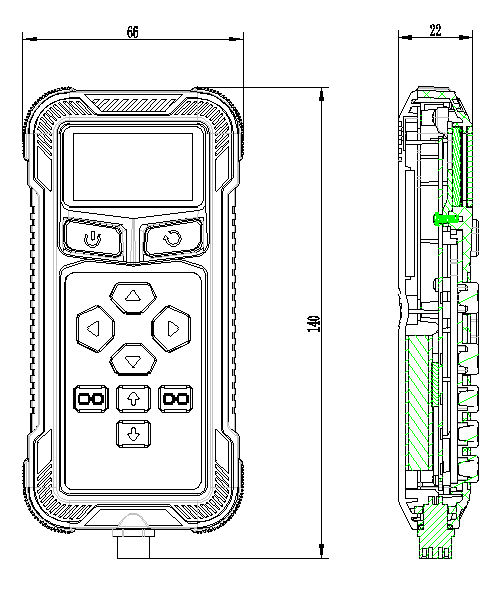

Controller :
Integrated design with wire and wireless function.
The working functions could be displayed in the top window.
Dual color mold injection and heavy duty design.
Supply special designed vehicle console bracket for the controller stowed.

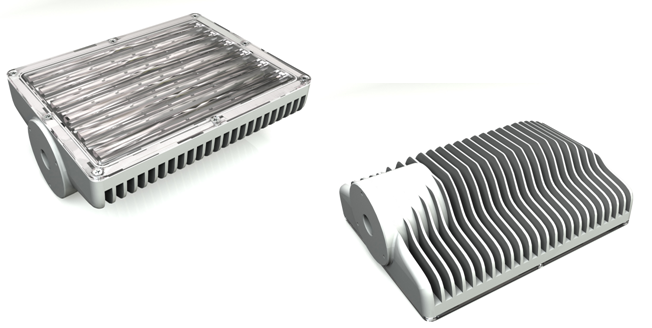

Parameters of Lamp – DFV model:
Lamp working voltage: AC220V
Lamp power: 150W*4
Lamp working current: ≤ 25A
Luminous flux: 45200lm
Lamp protection level: IP66

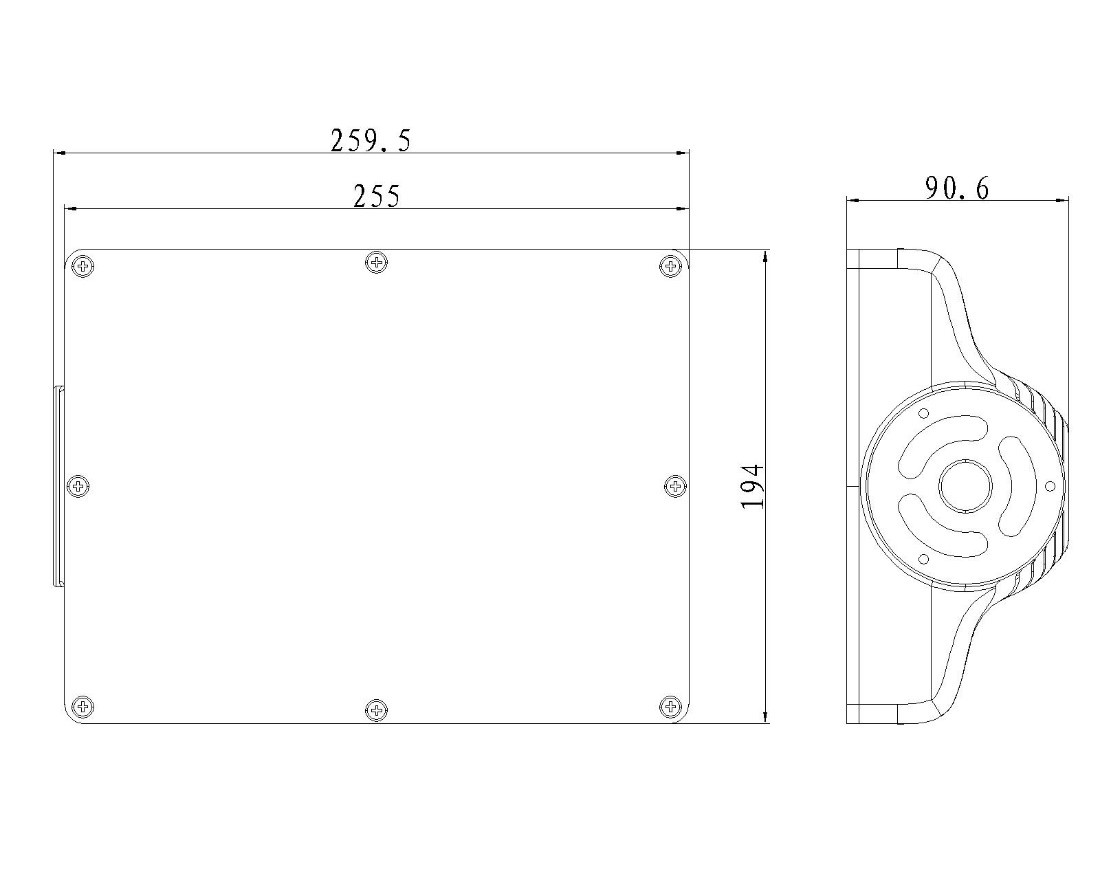

Lamp size: 260*194*91mm
Lamp switching mode: two sets of lamps are controlled separately
Lighting form: flood light
Lighting source type: LED
Luminaire LED quantity: 48*3W/each

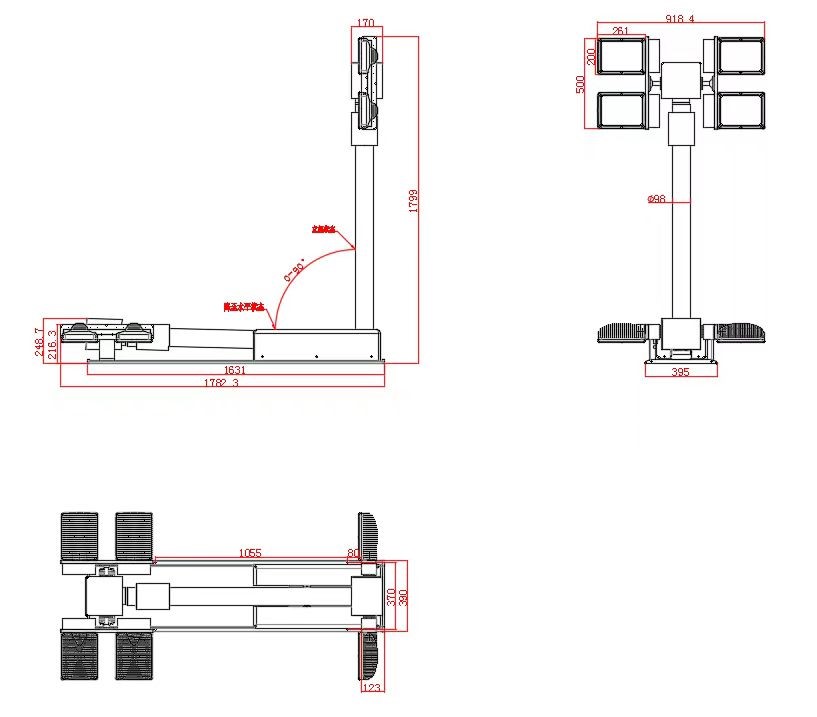

Parameters of Mast:
Mast system working voltage: DC24V / DC12V
Rotating working current: ≤2 A (max)
Actuator working current: ≤12 A
Horizontal rotation angle: 380°
Vertical rotation angle: 330°
Horizontal and vertical rotation speed: 4r/min
Equipment working environment temperature: -20°～55°
Remote control distance: ≥30 meters, powered by 3 AA dry batteries
Protocol control mode: RS485 control interface (built-in)
Protocol Agreement address: 05
Baud rate: 9600
Lifting mast: 04 sections
Lifting power: pneumatic
Automatic pressure limiting protection device: The protection is disconnected at 0.4Mpai and restored at 0.2Mpai.
Wire type: Internal Hidden Wire or External Spring Wire for easy maintenance
Weight: 110 KGS
